Dental Matrix Bands
- Special reinforced matirial ensures the appropriate strength and elasticity
- Good elasticity and toughness, good clamping force, invariability after repeated use
- Larger curvature can wrap and fit the tooth more stably
- The resin material has good elasticity and resilience, does not deform
- Autoclavable
Description
Matrix bands are stainless steel or medical-grade plastic devices used in dental restoration and orthodontic treatments. They create temporary containment walls around teeth to assist in molding and shaping restorative materials during clinical procedures.
The matrix bands provide a clear boundary and shape around the tooth, allowing the restorative material to be accurately filled into the designated area, resulting in an ideal tooth form restoration.
Matrix Bands Category
GD-5691
package: 144 pcs/bag
Support 134℃ high temperature disinfection
| wide: #2 thickness: 0.04mm(0.0015") |
| wide: #2 thickness: 0.05mm(0.002") |
| standard, #1 thickness: 0.04mm(0.0015") width: 6.5mm |
| standard, #1 thickness: 0.05mm(0.002") width:6.5mm |
| wide #3 thickness: 0.04mm(0.0015") |
| wide #3 thickness: 0.05mm(0.002") |
| wide #13 thickness: 0.04mm(0.0015") |
| wide #13 thickness: 0.05mm(0.002") |
GD-5696 Sectional Matrix Bands
package: 50 pcs/box
Support 134℃ high temperature disinfection
| No.1, Hard, Premolar, Wide: 4.5mm, Thickness: 0.038mm |
| No.2, Hard, Molar, Wide: 5.5mm, Thickness:0.038mm |
| No.3, Hard, Tall molar, Wide: 6.5mm, Thickness: 0.038mm |
| No.4, Hard, Permolar with extension, Wide: 5mm, Thickness:0.038mm |
| No.5, Hard, Molar with extension, Wide: 6.5mm, Thickness:0.038mm |
| No.6, Hard, Tall molar with extension, Wide: 8.5mm, Thickness: 0.038mm |
GD-5692
package: 144 pcs/box
Support 134℃ high temperature disinfection
GD-5694 Sectional Matrix Bands
package: 50 pcs/box
Support 134℃ high temperature disinfection
low crown or deciduous teeth, width: 3.5mm
premolar, width: 4.5mm
molar, width: 5.5mm
molar with extension, width: 6.5mm
GD-5965 Sectional Matrix Bands
package: 50 pcs/box
Support 134℃ high temperature disinfection
Bicuspids, Wide: 4.5mm, Thickness: 0.038mm
Molar, Wide: 5.2mm, Thickness: 0.038mm
Tall Molar, Wide: 6.4mm, Thickness: 0.038mml
Molar with extensions, Wide: 6.4mm, Thickness: 0.038mm
GD-5697 Forming Sheet Matrix
package: 20 pcs/box, 50 pcs/box
Thickness 0.038mm
Support 134℃ high temperature disinfection
Autoclavable products only
Autoclavable products only
light blue
yellow
green
orange
purple
GD-1.330 Saddle Metal Matrices
package: 36 pcs/box
Support 134℃ high temperature disinfection
GD-1.310 Saddle Metal Matrices
package: 18 pcs/box
Support 134℃ high temperature disinfection
Small, Medium, Large, Clip
GD-5702 Retainer and Matrix
package: 24 pcs/box
Support 121℃ high temperature disinfection
| Stainless Steel |
| Orange: Wide 6.2mm, thickness 0.025mm, Wingless or with wing |
| Green: Wide 6.2mm, thickness 0.038mm, Wingless or with wing |
| Purple: Wide 4.8mm, thickness 0.038mm, Wingless or with wing |
| Red: Wide 6.2mm, thickness 0.075mm, Wingless or with wing, Mylar |
GD-5698 Steel Matrice Bands
package: 1 roll/box
Support 134℃ high temperature disinfection
| wide: 5mm, thickness: 0.025mm, length: 3m |
| wide: 5mm, thickness: 0.04mm, length: 3m |
| wide: 5mm, thickness: 0.05mm, length: 3m |
| wide: 6mm, thickness: 0.025mm, length: 3m |
| wide: 6mm, thickness: 0.04mm, length: 3m |
| wide: 6mm, thickness: 0.05mm, length: 3m |
| wide: 7mm, thickness: 0.025mm, length: 3m |
| wide: 7mm, thickness: 0.04mm, length: 3m |
| wide: 7mm, thickness: 0.05mm, length: 3m |
GD-5699 Resin Strip Roll
package: 1 roll/box
Support 134℃ high temperature disinfection
wide: 9.5mm , thickness: 0.05mm , length: 15m
Matrix bands are available in different sizes and shapes depending on the patient’s teeth to choose them, helping the dentist to precisely control the restorative result. matrix bands can also be used in conjunction with dental wedges to control the thickness of the restorative material, avoiding the filling material from being too thick or too thin.
With advances in medical technology, matrix bands design will become more intelligent, further raising accuracy and effectiveness in restorations. The evolution of material science will also lead to matrix bands constructed with newer materials that are more comfortable and durable. More Details, please contact us.
The types of dental matrix bands
Sectional Matrix Bands
Sectional matrix bands are most suitable for Class II and Class III cavity restorations, especially posterior teeth. Their pre-designed arcs can well adapt to the anatomical structure of teeth, creating natural proximal contact and preventing protrusion. They are made of thin and tough stainless steel and can maintain stability in narrow Spaces. This is crucial for the bonding of composite materials used in dental fillings.

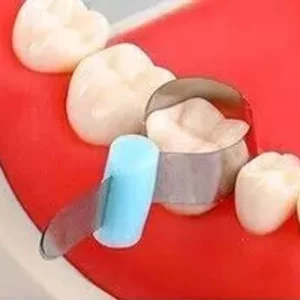

Circumferential Matrix Bands
Circular (full circle) matrix bands are used for full coverage restoration and can be applied to crown preparation or post-treatment of large Class I cavities. Made of stainless steel or disposable plastic, it offers 360° surround support to ensure even material placement and repair contours.

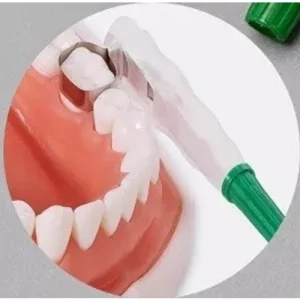

Retainer Matrix Bands
It is often used in situations where the preparation of posterior tooth crowns and large-scale restorations require a relatively long surgical time. It also offers 360° surround support and comes with a built-in locking design, eliminating the need for dental wedges to assist in support. They can provide a long-term state maintenance, waiting for the restoration to complete curing.
Resin Strip Roll
Resin Strip Roll is a kind of matrix band made of plastic, which is cut as much as needed. Moreover, resin strip roll is for single use only. There is no need to consider cleaning and disinfecting after use. It is very convenient and saves time.
Why Dentists Trust Our Dental Matrix Bands
- Safe and sterile: Our base tapes all comply with FDA and CE standards. They all undergo strict sterilization before leaving the factory and all support high-temperature and high-pressure sterilization. To prevent cross-infection, it is also recommended that you strictly sterilize before and after each use.
- Durability: The stainless steel matrix band can resist deformation very well during placement and removal, and can still ensure excellent performance after repeated use.
- High precision: Our matrix band undergoes multiple edge pressing processes to ensure fine, smooth and burr-free edges. It can create a tightly sealed environment, prevent the leakage of dental filling materials, and reduce the incidence of postoperative tooth sensitivity and secondary caries.
How to use dental matrix bands correctly
Select the appropriate type and size:
After the examination, based on the X-ray film and the position of the tooth that needs to be filled. Select the type and size of the dental matrix band. If deep caries of the posterior molars need to be filled, it is best to choose Retainer Matrix Bands, which can maintain a stable state for a long time. If it is a wedge-shaped defect of the premolars, Sectional Matrix Bands can be used in combination with interdental wedges to cooperate. This is because the premolars have a good field of vision and the area of the wedge-shaped defect is relatively small, and only part of the tooth body needs to be surrounded.
Safe placement:
When using the matrix band to stabilize the periodontal area, ensure that it is flush with the gum edge and do not apply excessive force to prevent it from embedding into the gum and causing discomfort to the patient.
Check the contour:
Before filling the restorative material, make sure that the contour surrounded by the matrix band is full and natural, and fits well with the tooth. Prevent overfilling or underfilling from hindering subsequent treatment.
Careful removal:
After the repair material has cured, gently remove the matrix band. Then check the edge area to determine the repair effect.
Solve the pain points related to matrix bands
According to the feedback from our customers, there are three major challenges in optimization
1. Difficulty in spatial adaptation:
During the restoration of interproximal caries of molars, the matrix band either cannot fit into the narrow gap or blocks the operational field of vision when inserted.
Optimization Plan: Our GD-5696 Sectional Matrix Bands have been upgraded and differentiated into six models based on the investigation of the molar size and interdental space of thousands of patients. For detailed specifications, please refer to the table above. It basically covers 90% of the patients’ molar samples. Let you no longer have difficulty choosing when doing interproximal molars restoration.
2. Edge leakage issue:
After filling, it is always found that there are flash or even large protrusions at the junction edge, which requires a lot of time for subsequent polishing and grinding. It was caused by the edge of the formed sheet not being sealed well.
Optimization plan: This kind of problem is mostly due to insufficient locking pressure of the forming sheet. Sometimes, when using interdental wedges for assistance, the pressure is uneven, resulting in insufficient edge sealing and overflow of the repair material. The GD-5702 Retainer Matrix Bands we developed later can effectively solve this problem. It can provide 360° surround locking and maintain uniform pressure for a long time.
3. Material durability:
Ordinary stainless steel formed sheets deform after being disinfected three times.
Optimization plan: Upgrade to 316L medical stainless steel material, supporting 134℃ high-pressure steam sterilization, maintaining shape stability after 20 sterilization cycles.
FAQs
For anterior tooth restoration, the tooth diameter can be referred to: for central incisors, choose the small type (width 5-6mm), and for canines, choose the standard type (6-7mm). The interproximal Spaces of the posterior teeth need to be measured with periodontal probes
- Stainless steel (such as GD-5696) : Suitable for the area of the back teeth that bears bite force. A thickness of 0.051mm provides strong support, but it should be noted that the disinfection frequency should not exceed 8 times (otherwise, the edge is prone to deformation).
- Memory alloy (GD-5692) : The preferred choice for aesthetic restoration of anterior teeth, it can be bent at 90° and automatically rebound, especially suitable for cases with complex cervical margin curves.
- Common stainless steel: It is recommended to sterilize at 121℃. After more than 10 cycles, the edge sealing force will decrease by 37%, and it needs to be replaced in time.
- Medical-grade 316L stainless steel: Supports rapid sterilization at 134℃ and maintains shape stability after 20 cycles.
Prefer soft and safe types, such as GD-5699 Resin Strip Roll. It is a matrix band made of resin material and the generated pressure is not too intense. It is suitable for patients like children whose teeth are not fully developed.
